Hammer Crusher

Hammer Crusher

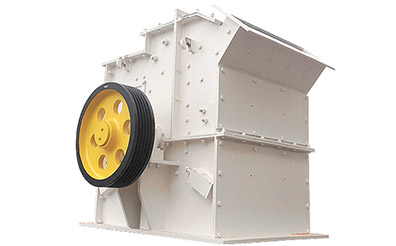

The hammer crusher mainly depends on impact power to crushing material. It can directly crush the big size material into small size material less than 25mm. It is a good choice for medium and fine crushing process, which saved the secondary crushing step for customers. The big size stone rushed by the hammer crusher can be directly feed into the grinding system. It has the advantages of high crushing ratio, small occupation and high flexibility.

Application:

It can be used to crush the medium hard material in the industries of cement, chemical, electrical and metallurgical

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

technical parameter

Model

Max. Feeding Size (mm)

Output Size(mm)

Output Capacity (t/h)

Motor Power (kw)

Overall dimension (L*W*H)

Weight(t)

GPC300×400

200

≤25

5-10

11

900x670x860

0.8

GPC400×600

250

≤30

10-22

22

1200×1050×1200

2.26

GPC600×800

250

≤35

18-40

55

1310×1180×1310

4.8

GPC800×1000

350

≤35

25-50

75

1600×1390×1575

5.9

GPC1000×1000

350

≤35

30-55

90

1800×1590×1775

8

GPC1250×1250

350

≤35

35-65

132

2060×1600×1890

14

GPC1250×1250

350

≤35

50-100

280

2365×1870×2220

32

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
