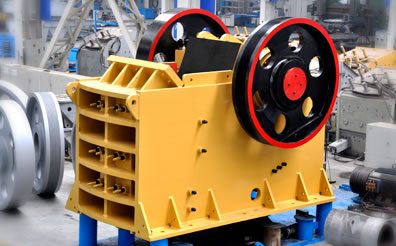

PE Jaw Crusher

PE Jaw Crusher

PE series jaw crusher is designed to work as primary crusher to process hard stone and recycle aggregate. Our PE jaw crusher is special designed to work both stationary and mobile processes, surface and underground operations.

Application:

Granite, limestone, basalt, shale, river stone, bluestone, sandstone, calcium carbide, iron ore, copper ore, ect. The PE Jaw crusher can work as primary crusher or coarse crushing equipment in mining process, quarry plants, aggregate production.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

PE Jaw Crusher is suitable for

1. Primary and secondary crushing

2. Compression strength is no more than 310Mpa

3. Any demanded crushing applications, stationary and mobile, surface and underground

4. Hard rock and recycle materials

Features of jaw crusher:

Robust and Assembly Design

PE series jaw crusher is premium class crushers due to their design as well as to the materials that are used to produce them, so as to ensure the highest possible functionality and reliability. Now we can provide two kinds of jaw crusher, welded frame jaw crusher and modular no-welded frame jaw crusher. Both of the jaw crushers are assembled with high quality casting steel pitman, iron flywheels, 18%manganese steel alloys jaw plates.

The Right Cavity Design

How to improve the capacity? The cavity is the heart and only purpose of the jaw crusher. The right feed opening width to depth ratio ensures minimum blockage and eliminates unnecessary height from the crusher.

The tooth profiles as well as the thickness of the jaws are optimized and combined with the right manganese steel alloys to maximize throughput and minimize operating costs.

Designed to Bring Your Crushing Costs Down

1. Tired of repairing your jaw crusher's foundation? Special rubber dampers and stoppers allow the crusher to move vertically and longitudinally while preventing wear and subsequent damage to the crusher's foundation;

2. The most durable jaw plates and bearings.

Little Dust and Low Noise Level

Equipped with dust-cleaning apparatus water tank, in order to reduce the noise, damping layer is filled in the interlayer between the upper body and the lower body, which combines to create safer and cleaner working environment.

Specifications of jaw crusher

Type Maximum Feed(mm) Adjusting Range(mm) Production Capacity(t/h) Spindle Speed(r/min) Motor Power(kw) Dimensions
(Length*Wide*Height)
(mm)



Weight
(excluding motor)(t)
PE250*400 210 20-80 10-20 310 15 1108*1142*1392 2.8
PE400*600 340 40-100 25-65 275 30 1700*1732*1653 6.5
PE500*750 425 50-100 45-100 275 55 2050*1860*2145 10.2
PE600*900 500 65-160 50-120 250 55-75 2792*2168*2250 15.5
PE750*1060 630 80-140 52-180 250 110 2660*2430*2800 28
PE900*1060 685 90-150 100-250 250 110 2970*2556*2800 31
PE900*1200 750 95-165 140-260 200 132 3380*2870*3330 50
PE1000*1200 850 150-265 315-340 200 132 3480*2876*3330 50.6
PE1200*1500 1020 150-300 400-800 180 160-220 4200*3300*3500 97.5
PEX1000*250 210 25-60 10-32 330 37 1580*1992*1380 7.0
PEX1200*250 210 25-60 13-38 330 37 1530*2192*1380 7.7
PEX1300*300 250 20-90 16-100 300 75 1880*2320*1725 11.08



Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
