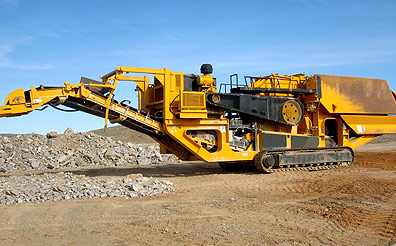

The Crawler mobile crushing plant is designed by Germany technicians, it can fully meet the customers' requirements on High Capacity, High Mobility and High Reliability.
Crawler Mobile Crushing plants can configure different types of crusher according to customers' requirements, such as crawler mobile jaw plant, crawler mobile impact plant, crawler mobile cone plant, crawler mobile screen plant, and complete crushing and screening plants.
Features of Crawler Mobile Crushing Plant:
1. High Capacity, High Mobility, High Reliability;
2. Heavy duty crawler chassis design;
3. Easy transportation and fast set-up;
4. Cummins or CAT engine, more power, less consumption;
GC Series Crawler Crushing Plant purchase from world famous brand:
Cummins or CAT Engine (Option)
Rexroth Hydraulic Pump (Option)
| GCSeries Crawler Jaw Crushing Plants | GC-J6 | GC-J7 | GC-J8 | GC-J10 |
| Jaw Crusher | ||||
| Model | J6 | J7 | J8 | J10 |
| Feed Opening(mm) | 600×1060 | 760×1000 | 850×1150 | 1070×1400 |
| Max Feeding Size (mm) | 500 | 630 | 720 | 950 |
| Discharge Range (mm) | 60-175 | 70-200 | 70-220 | 100-250 |
| Capacity (t/h) | Up to 280 | Up to 400 | Up to 500 | Up to 800 |
| Driving Unit | ||||
| Engine | Cummins Tier3 | Cat C9 | Cat C12 | Cat C15 |
| Power (kw) | 164 | 242 | 317 | 390 |
| Feed Hopper | ||||
| Hopper Volume(m3) | 6 | 7 | 8 | 10 |
| Scalpers | ||||
| Drive Mode | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Main Conveyor Belt | ||||
| Belt Width(mm) | 1000 | 1000 | 1200 | 1400 |
| Discharge Height (mm) | 2900 | 3300 | 3800 | 4000 |
| Drive Mode | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Side Conveyor Belt | ||||
| Discharge Height (mm) | 2140 | 2400 | 3000 | 3200 |
| Drive Mode | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Crawler Unit | ||||
| Drive Mode | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Permanent Magnetic Separator | ||||
| Magnetic Separator | Option | Option | Option | Option |
| Working Dimensions | ||||
| Length(mm) | 12600 | 14800 | 16000 | 16500 |
| Width(mm) | 4060 | 4100 | 4200 | 4300 |
| Height(mm) | 4160 | 4400 | 4400 | 6000 |
| GC - PH SERIES CRAWLER IMPACT CRUSHING PLANTS | GC – I139 | GC – I359 |
| Impact Crusher | 139 | 359 |
|
Feed Opening (mm)
|
1100x630 | 1550x1130 |
| Max Feeding Size (mm) | 800 | 1000 |
| Crushing Capacity(t/h) | up to 250 | up to 480 |
| Drive | Direct-Drive | Direct-Drive |
| Driving Unit | ||
| Engine | CAT C9 | CAT C18 |
| Performance (kw) | 242 | 470 |
| Feed Hopper | ||
| Hopper Volume (m3) | 4.8 | 8.5 |
| Grizzly Feeder With Pre-Screening (two-deck) | ||
| Drive | Hydraulic | Hydraulic |
| Main Conveyor Belt | ||
| Discharge Height (mm) | 3100 | 3500 |
| Drive | Hydraulic | Hydraulic |
| Side Conveyor Belt (Option) | ||
| Discharge Height (mm) | 1900 | 3500 |
| Drive | Hydraulic | Hydraulic |
| Crawler Unit | ||
| Drive | Hydraulic | Hydraulic |
| Permanent Magnetic Separator | ||
| Magnetic Separator | Option | Option |
| Dimensions and Weights | ||
| Working Dimensions | ||
| Length (mm) | 14600 | 18000 |
| Width (mm) | 4500 | 6000 |
| Height (mm) | 4200 | 4800 |
| Transport Dimensions | ||
| Length (mm) | 13300 | 17000 |
| Width (mm) | 3350 | 3730 |
| Height (mm) | 3776 | 4000 |
| Weight (t) | 43 | 70 |
| Crawler Cone Crushing Plants | GC-C120 | GC-C180 | GC-C250 |
| Cone Crusher | |||
| Model | GHC120 | GHC180 | GHC250 |
| Max Feeding Size (mm) | 160 | 180 | 260 |
| Discharge Range (mm) | 9-32 | 9-32 | 9-51 |
| Capacity (t/h) | Up to 150 | Up to 200 | Up to 350 |
| Driving Unit | |||
| Engine | Cummins or CAT | Cummins or CAT | Cummins or CAT |
| Power (kw) | 261 | 261 | 400 |
| Feed Hopper | |||
| Hopper Volume (m3) | 4 | 5 | 6 |
| Belt Feeder | |||
| Drive Mode | Hydraulic | Hydraulic | Hydraulic |
| Main Conveyor Belt | |||
| Discharge Height (mm) | 2900 | 3300 | 3300 |
| Drive Mode | Hydraulic | Hydraulic | Hydraulic |
| Crawler Unit | |||
| Drive Mode | Hydraulic | Hydraulic | Hydraulic |
| Working Dimensions | |||
| Length (mm) | 13767 | 13850 | 14530 |
| Width (mm) | 3621 | 3650 | 4150 |
| Height (mm) | 4497 | 4550 | 4720 |
| Transport Dimensions (The head-piece of conveyor belt can be folded for transportation) | |||
| Length (mm) | 14273 | 14320 | 14900 |
| Width (mm) | 3543 | 3570 | 3640 |
| Height (mm) | 4024 | 4050 | 4130 |
| Weight (t) | 37 | 39.5 | 49 |
| GC-S Series Crawler Screen Plants | GC-S151 | GC-S153 | GC-S181 |
| Vibrating Screen | |||
| Screen Size (mm) | 1500×4500 | 1500×6100 | 1800×4800 |
| Deck | 2 or 3 | 2 or 3 | 2 or 3 |
| Driving Unit | |||
| Engine | Cummins or CAT | Cummins or CAT | Cummins or CAT |
| Performance(kw) | 110 | 138 | 110 |
| Feed Hopper | |||
| Hopper Volume(m3) | 10 | 10 | 10 |
| Belt Feeder | |||
| Drive Mode | Hydraulic | Hydraulic | Hydraulic |
| Main Conveyor Belt | |||
| Belt Width(mm) | 1200 | 1200 | 1200 |
| Drive Mode | Hydraulic | Hydraulic | Hydraulic |
| Crawler Unit | |||
| Drive Mode | Hydraulic | Hydraulic | Hydraulic |
| Working Dimensions | |||
| Length (mm) | 16457 | 19800 | 16539 |
| Width (mm) | 14282 | 17800 | 14327 |
| Height (mm) | 4199 | 7300 | 4238 |
Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
