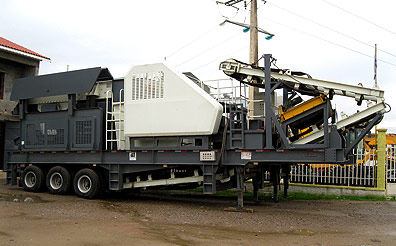

Mobile Jaw Crushing Plant

Mobile Jaw Crushing Plant

This series mobile jaw crushing plant is the crushing equipments for rocks and construction waste, which is widely used in metallurgy, chemical industry, construction material, especially for highway, railway, hydropower project mobility operations.

Application:

Mining, building materials, highway, water conservancy, construction waste recycling crushing and screening.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

According to the different crushing demand, we can design different solution: crushing firstly and then screening, or screening firstly and then crushing. The stone crushing station can be assembled as primary crushing and secondary crushing and also can be assembled as primary crushing, intermediate crushing, and tertiary crushing, each of which is so flexible and can be used individually. It can satisfy the customers' various demands fully.

Features of mobile jaw crushing plant

1. Low transportation cost:

Compact structure, hidden style traction frame is easy to be packed up and put up. The transportation turning radius is very small, which is very convenient to be transported on highway and moved at crushing sites.

2. Flexible configuration and great adaptability:

Each of mobile crushing station can be used individually, and can be composed of two-stage plants or three-stage plants with different requirements.

3. Complete set of equipment:

Installation form of complete set of equipment eliminates installation operation of segregate sets on complicated spot. Waste of material and labor hour is reduced as well.

4. Reduced transportation cost of material:

Mobile crushing station can crush raw material on spot, so the crushing process of raw material far from spot can be avoided, so the transportation cost of material is greatly reduced.  Moreover, the lengthened station can send crushed material to the transferring wagon to transfer the material.

5. Stable performance and easy maintenance:

All machines for mobile crushing plant, which the design have been optimized that results in higher strength, better performance and more compact structure. And the intelligent humanization design let maintenance quickly and conveniently.

Technical data :

Model MW-E46 MW-E57 MW-E69 MW-E75 MW-E912
Transportation length(mm) 8600 9800 11000 13000 14000
Transportation width (mm) 2450 2450 2450 2450 3000
Transportation height (mm) 3800 3500 3600 4500 4800
Max. length (mm) 12000 13300 13200 15000 17000
Max. width (mm) 2800 2900 2900 2900 3100
Max. height (mm) 3800 4100 4600 5800 5800
Weight  (T) 26 32 41 55 81
Tire configuration Dualaxial Dualaxial Triaxial Triaxial Triaxial
Jaw crusher PE400×600 PE500×750 PE600×900 PE750×1060 PE900×1200
Max. feeding size (mm) 350 425 480 630 750
Discharge opening size(mm) 40-100 50-100 65-160 80-140 95-165
Capacity (T/h) 15-60 50-100 60-130 100-250 160-380
Vibrating feeder ZSW850×3000 GZD960×3800 ZSW960×3800 ZSW1100×4200 ZSW1300×4900
Main belt conveyer B650×7M B650×7.5M B500×8M B1000×9M B1200×11M
Side belt conveyer (optional) B400×3M B500×4M B500×4M B500×4M B650×4M
Magnetic separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-12

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
