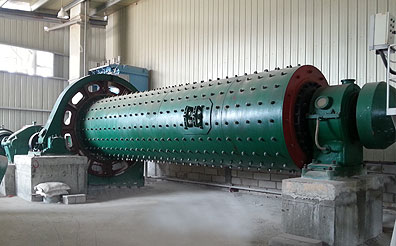

Ball mill

Ball mill

Ball Mill is primarily used for fine grinding. Ball Mill is key equipment which repulverizes the material after it is crushed. Advantages of the ball mill are lower investment, energy saving, structure novelty, easy and safe to operate, stable and reliable performance, etc. It is suitable for milling of general and special ore materials.

Application:

Ball mill is widely used in cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

 Specification:

Model Cylinder(mm) Cylinder Rotation Speed(r/min) Ball weight(t) Feeding Size(mm) Output Size(mm) Capacity(t/h) Power(Kw) Weight(Kg)
Diameter Length
MQYG1230 1200 3000 31.38 5.00 ≦25 0.074~0.3 1.6-6.3 45 14009
MQYG1245 1200 4500 31.38 6.50 ≦25 1.8-3.9 55 16520
MQYG1530 1500 3000 29.20 9.70 ≦25 2.8-9 95 19500
MQYG1545 1500 4500 29.58 14.00 ≦25 4.8-11 110 28900
MQYG1557 1500 5700 30.15 15.50 ≦25 5-16 130 30782
MQYG1564 1500 6400 30.15 16.00 ≦25 5.4-17.8 155 31000
MQYG1836 1830 3600 25.50 15.20 ≦25 5.3-14.2 155 34560
MQYG1845 1830 4500 25.50 20.00 ≦25 7.3-17.2 180 35800
MQYG1857 1830 5700 25.50 20.00 ≦25 7.0-16.8 180 37961
MQYG1864 1830 6400 24.20 18.50 ≦25 6-12 210 38600
MQYG1870 1830 7000 23.92 21.50 ≦25 7.8-13.8 245 40886
MQYG1875 1830 7500 23.92 21.51 ≦25 7.8-14.7 245 41050
MQYG1895 1830 9500 23.92 29.00 ≦25 12-20.4 280 51108
MQYG2136 2100 3600 23.80 28.00 ≦25 6.2-36 210 52620
MQYG2145 2100 4500 24.98 24.50 ≦25 10-21 245 56990
MQYG2160 2100 6000 24.98 33.00 ≦25 9-36 380 62838
MQYG2236 2200 3600 24.98 24.00 ≦25 7-15.5 245 53750
MQYG2245 2200 4500 24.98 26.00 ≦25 9.5-20.5 320 57698
MQYG2265 2200 6740 21.95 32.00 ≦25 14-15 380 62635
MQYG2270 2200 7240 21.95 33.00 ≦25 10-18 380 65860
MQYG2295 2200 9750 21.95 41.00 ≦25 18-21 475 85952
MQYG2436 2400 3600 21.60 30.00 ≦25 10-21 280 61120
MQYG2445 2400 4500 21.60 33.00 ≦25 13.7-28 380 66580
MQYG2470 2400 7000 21.6 40 ≦25 17-36 570 91401
MQYG2485 2400 8500 21.4 45 ≦25 15-28 570 96840
MQYG2660 2600 6000 20.99 55.7 ≦25 30-36 530 94830
MQYG2680 2600 8000 20.88 61 ≦25 35-42 800 131493
MQYG2611 2600 11000 20.6 68 ≦25 30-55 1000 142576
MQYG2736 2700 3600 21.70 39.00 ≦25 11.7-28 400 86791
MQYG2745 2700 4500 21.37 40 ≦25 16.5-36 475 91878
MQYG3236 3200 3600 18.60 56.50 ≦25 17.5-39.6 630 118000
MQYG3245 3200 4500 18.60 65.00 ≦25 24-49 800 128500
MQYG3645 3600 4500 17.80 88.00 ≦25 29-65 1250 165000
MQYG3660 3600 6000 17.80 117.00 ≦25 35-80 1600 196000
MQYG4050 4000 5000 16.40 101.00 ≦25 46-97 1600 248000

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
