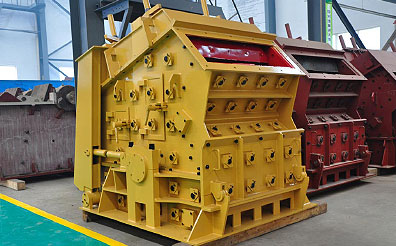

PF Impact Crusher

PF Impact Crusher

Impact crusher is also called horizontal Impact Crusher can be used to process many rocks and stones such as granite, basalt, limestone, shale, river stone, cement clinker, quartz stone, phosphate ore, bauxite, slag, etc. Usually impact crusher is used for secondary crusher.

Application:

PF Impact crusher is ideally suited to crush run of quarry, medium-hard material down to a product size of 0 – 8 inches in a single pass. PF Impact crusher is widely used in aggregate production to get very good cubical shape. PF Impact crusher can be used in quarry plant and mining plant.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

PF series Impact Crusher has been designed to get high production ratio crushing process and good cubic shape product. PF series Impact Crusher feature a combination of heavy-duty rotor, wear material and crushing chamber design, this combination has been proved revolutionary in improving capacity, product quality (cubical shape) and in reduces wear costs. PF series Impact Crushers are widely used in primary, secondary, tertiary and recycling applications.

Capacity: PF Impact Crusher has been optimized to increase output and productivity, Our Horizontal Impact Crusher capacity range from 10 t/h to 1400t/h.

Max feeding size: PF Impact Crusher get amazing crushing ratio(reduction ration), it's max feeding size is 100mm.

PF Impact Crusher is ideal for

1. Get high reduction ratio;

2. Good cubical shape to meet asphalt and concrete product specifications;

3. Quarrying and cement industry, concrete and asphalt recycling, and slag recycling.

Main Working Benefits of PF Impact Crusher

1. Quick and easy installation;

2. Very simple design with high mechanical reliability;

3. Simple to use.

To Get Main Maintenance Benefits

1. Easy blow bars locking device;

2. Wide choice of blow bars and liners;

3. Friendly design to easy maintenance;

4. Many options to improve crusher efficiency;

5. Safe environment working condition.

Designed to Bring Your Crushing Costs Down

1. Tired of repairing your jaw crusher's foundation? Special rubber dampers and stoppers allow the crusher to move vertically and longitudinally while preventing wear and subsequent damage to the crusher's foundation;

2. The most durable jaw plates and bearings.

Little Dust and Low Noise Level

Equipped with dust-cleaning apparatus water tank, in order to reduce the noise, damping layer is filled in the interlayer between the upper body and the lower body, which combines to create a safer and cleaner working environment.

Specifications

Type Feeding Hole
Dimension(mm)
Maximum Feedstock
Granularity(mm)
Rotor
Dimension
(mm*mm)
Capacity Power(kw) Overall
Dimension
(mm*mm*mm)
Weight(t)
PF-1007 400*730 300 Φ1000*700 30-50 55 2400*1560*2660 9.8
PF-1010 400*1080 350 Φ1000*1050 50-80 55-75 2440*2250*2630 12.8
PF-1210 400*1080 350 Φ1250*1050 70~120 110-132 2700*2340*2900 14.6
PF-1214 400*1430 350 Φ1250*1400 130-180 132/160 2700*2690*2890 18
PF-1315 860*1500 500 Φ1320*1500 160-250 180-260 3100*3280*2670 19.5
PF-1415 1145*1500 650 Φ1450*1500 220-450 220-315 4905*3154*2613 27
PF-1520 830*2050 700 Φ1512*2000 300-550 315-440 3849*3422*3649 38.5
PF-1818 1600*1850 1000 Φ1800*1800 60-850 650-900 4471*3250*4008 75

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
