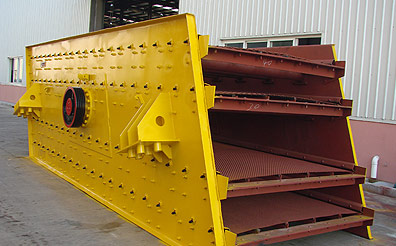

Vibrating Screen

Vibrating Screen

The vibrating screen moves in a circular motion with multiple layers and high efficiency. The vibrating screen is designed with the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing. It is manufactured with long material screen rifling and many screen specifications.

Application:

Vibrating screen is widely used in beneficiation, artificial sand system, building materials, chemical industry and coal. Raw materials: All kinds of sand or stone. Capacity: 40-1200t/h.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

Features of Circular Vibrating Screen
1. Ring groove rivet connection, advanced structure and excellent durability.
2. Designed with a simple structure, with eccentric block as excitation, strong vibrating force, low electricity consumption and low noise.
3. Uses small amplitude, high frequency and big angle structure which enables it to have high screening efficiency and great handling capacity.
4. Uses large clearance bearings and is lubricated with thin oil. It causes little noise and has a long service life.

Specifications
Model Screen size (mm) No. of Deck Capacity (t/h) Motor
power (kW)
Vibrating
frequency (r/min)
Double
Amplitude (mm)
2YZS1237 3700×1200 2 10-80 11 970 6-8
2YZS1548 4800×1500 2 30-200 15 970 6-8
3YZS1548 4800×1500 3 30-200 15 970 6-8
2YZS1848 4800×1800 2 50-250 18.5 970 6-8
3YZS1848 4800×1800 3 50-250 18.5 970 6-8
2YZS1860 6000×1800 2 65-586 22 970 6-8
3YZS1860 6000×1800 3 65-586 22 970 6-8
2YZS2160 6000×2100 2 81-720 22 970 6-8
3YZS2160 6000×2100 3 81-720 30 970 6-8
4YZS2160 6000×2100 4 81-720 30 970 6-8
2YZS2460 6000×2400 2 100-810 30 970 6-8
3YZS2460 6000×2400 3 100-810 37 970 6-8
4YZS2460 6000×2400 4 100-810 37 970 6-8
2YZS2475 7500×2400 2 140-900 30 970 6-8
3YZS2475 7500×2400 3 140-900 37 970 6-8
2YZS2665 6500*2600 2 160-1300 37 730 8-11

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
