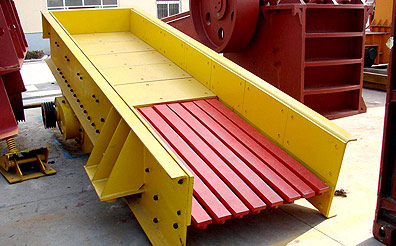

Vibrating Feeder

Vibrating Feeder

The vibrating feeder is mainly used for continuously and evenly feeding coarse crusher, screening fine aggregate, and thus enhances crusher capacity. When operated, the vibrating feeder can send massive and granular materials to the receiving device evenly, regularly and continuously.

Application:

Beneficiation, artificial sand system, building materials, silicate feeding, chemical industry. Raw materials: All kinds of sand or stone. Capacity: 100-1200t/h.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

Application of Vibrating Feeder

1. The vibrating feeder is mainly used for continuously and evenly feeding coarse crusher, screening fine aggregate, and thus enhances crusher capacity.

2. It can also roughly screen the materials.

3. The vibrating feeder has been widely used for crushing and screening in the industries of mine, metallurgy, building materials, chemical engineering, beneficiation, coal mine, etc.

Features of Vibrating Feeder

1. The vibrating feeder features double screening and embodies the functions of dirt removing, screening and feeding. It is characterized by even feeding, excellent continuity and adjustable vibrating force.

2. Smooth operation, great feeding capacity and high efficiency.

3. Eccentric block is the vibration source which features smooth operation, low noise, little electricity consumption, excellent adjustability and causes no material clashing.

Specifications
Type The max
feeding size
(mm)
capacity(t/h) Power (kW) Angle(º) Weight(kg)
GZG70-4 200 120-170 2X0.5 ~10 389
GZG100-4 300 270-380 2X1.1 ~10 762
GZD240X70 400 30-80 2×1.5 ~10 3000
GZD300×85 450 80-120 2×3.7 ~9 3900
GZD380×96 500 120-210 11 0 4200
GZD420×110 650 180-400 15 0 4800
GZD490×110 650 250-480 15 0 5300
GZD490×130 750 300-550 22 0 6700
GZD600×130 750 400-800 30 0 7800
GZD600×150 800 500-850 30 0 8800

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
