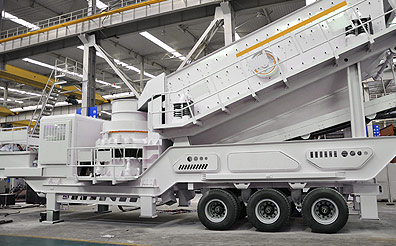

Mobile Cone Crushing Plant

Mobile Cone Crushing Plant

This series mobile cone crushing plant is the crushing equipments for rocks and construction waste, which is widely used in metallurgy, chemical industry, construction material, especially for highway, railway, hydropower project mobility operations.

Application:

Mobile cone crushing plant is widely used in building materials, water conservancy, mining, construction industry, metal and nonmetal mine.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

According to the different crushing demand, we can design different solution: crushing firstly and then screening, or screening firstly and then crushing. The stone crushing station can be assembled as primary crushing and secondary crushing and also can be assembled as primary crushing, intermediate crushing, and tertiary crushing, each of which is so flexible and can be used individually. It can satisfy the customers' various demands fully.

Features of mobile cone crushing plant

1. Low transportation cost:

Compact structure, hidden style traction frame is easy to be packed up and put up. The transportation turning radius is very small, which is very convenient to be transported on highway and moved at crushing sites.

2. Flexible configuration and great adaptability:

Each of mobile crushing station can be used individually, and can be composed of two-stage plants or three-stage plants with different requirements.

3. Complete set of equipment:

Installation form of complete set of equipment eliminates installation operation of segregate sets on complicated spot. Waste of material and labor hour is reduced as well.

4. Reduced transportation cost of material:

Mobile crushing station can crush raw material on spot, so the crushing process of raw material far from spot can be avoided, so the transportation cost of material is greatly reduced.  Moreover, the lengthened station can send crushed material to the transferring wagon to transfer the material.

5. Stable performance and easy maintenance:

All machines for mobile crushing plant, which the design have been optimized that results in higher strength, better performance and more compact structure. And the intelligent humanization design let maintenance quickly and conveniently.

Technical data:

Model MW-HC120S MW-HC180S MW-HC250S
Transportation length (mm) 13500 15200 15200
Transportation width (mm) 2830 2830 3000
Transportation height (mm) 4350 4350 4350
Max. length(mm) 14631 16400 15245
Max. width (mm) 3900 3900 3898
Max. height (mm) 5977 6380 6410
Weight  (T) 38 46 43.5
Tire configuration Dualaxial Triaxial Triaxial
Cone crusher SHC120 SHC180 SHC250
Belt conveyer under vibrating screen B800X7M B800X8M B1000X8M
Vibrating screen 2YZS1848 2YZS1860 2YZS2160

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
