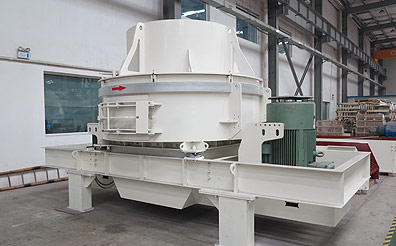

SV vertical shaft impact crusher

SV vertical shaft impact crusher

SV Vertical Shaft Impact Crusher is also called sand making machine which can be used in quarrying and minerals processing industries.The SV Vertical Shaft Impact Crusher is unique due to its crushing process.

Application:

The SV Vertical Shaft Impact Crusher can crush Iron ore, cooper ore, steel slag, river stone, granite, limestone, sandstone, basalt, quartz stone and clays.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

Due to its special rock-on-rock crushing technology, SV Vertical Shaft Impact Crusher can produce the best-shaped aggregate for asphalt and concrete mix. Because SV Vertical Shaft Impact Crushe can produce best-shaped high quality aggregate, it also be called Aggregate Crusher or Sand Maker.

Application of SV vertical shaft impact crusher:

1. Aggregates and sand making. The quarry industry has been the traditional home of the SV Vertical Impact Crusher.SV Vertical Impact Crushers are particularly successful in producing road-base, top dressing chip, concrete and asphalt aggregates, and manufactured sand;

2. Industrial minerals. With features such as controlled product grading, preferential crushing, low production costs and the ability to produce finely graded products, the addition of VSI can optimize the performance of most industrial mineral processing installations;

3. High capacity to produce finely graded products such as mill feed, sinter feed or material for heap leach operations, is an ideal machine to replace high cost, inefficient crushing and milling equipment;

4. Construction Waste recycling. Recycled materials not only take the form of mineral aggregates for the construction industry, but also glass, slag and other waste products that can be processed and profitably sold. The SV Vertical Shaft Impact Crusher iprovides the perfect means of treating these materials.

Features of SV vertical shaft impact crusher

1. Lower wear costs per ton. In some cases average wear part lives have increased by 50%. This means less maintenance time and higher crusher availability;

2. Highest flakiness/shape index of aggregates produced;

3. Crushing ratio easy adjustable as per rotation speed modification (the machine can be quickly tuned to face process needs);

4. High capacity (up to 400 TPH). A denser particle population in the chamber will give more effective reduction and improved shape;

5. Possibility to re-crush unsold small materials (2-6 mm; 4-8 mm,…) and single fraction round materials (16-32mm,…).

Specifications

Model Max Feed
Size(mm)
Rotor Speed(r/min) Capacity(t/h) Motor Power(kw) Overall Dimensions
(L×W×H)(mm)
Weight(kg)
SV-4000 55(70) 1400-1620 50-90 110-150 4100×1916×2166 ≤7840
SV-5000 65(80) 1330-1530 80-150 180-264 4300×2215×2427 ≤11200
SV-6000 70(100) 1200-1400 120-250 264-320 5300×2728×2773 ≤14590
SV-7000 70(100) 1000-1200 180-350 320-400 5300×2728×2863 ≤16580
SV-8000 80(150) 1000-1100 250-380 400-440 6000×3000×3420 ≤23450
SV-9000 80(150) 1000-1100 380-600 440-630 6000×3022×3425 ≤23980

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
